WKA

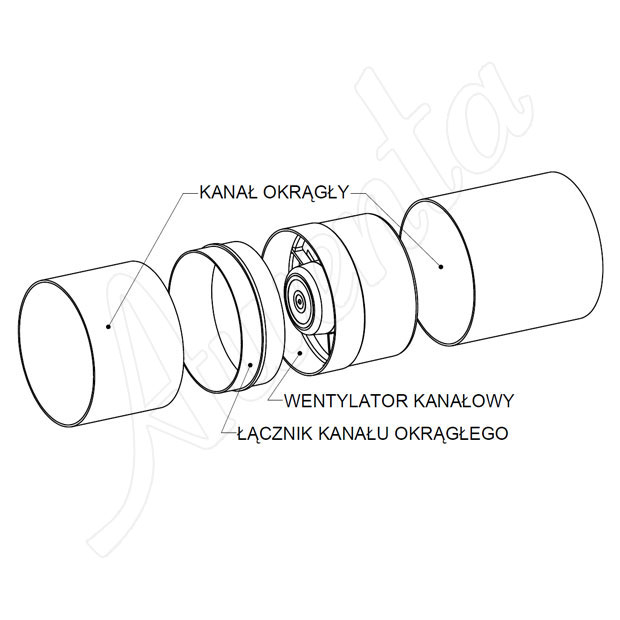

The WKA duct fans are designed to assist natural ventilation in a system of ventilation ducts, being useful in remote areas, away from the main ventilation drafts. Depending on the method of installation and the needs, they can work as supply or extract fans.
Details
| COLORS | |||||||||
|
BIAŁY - WKA |

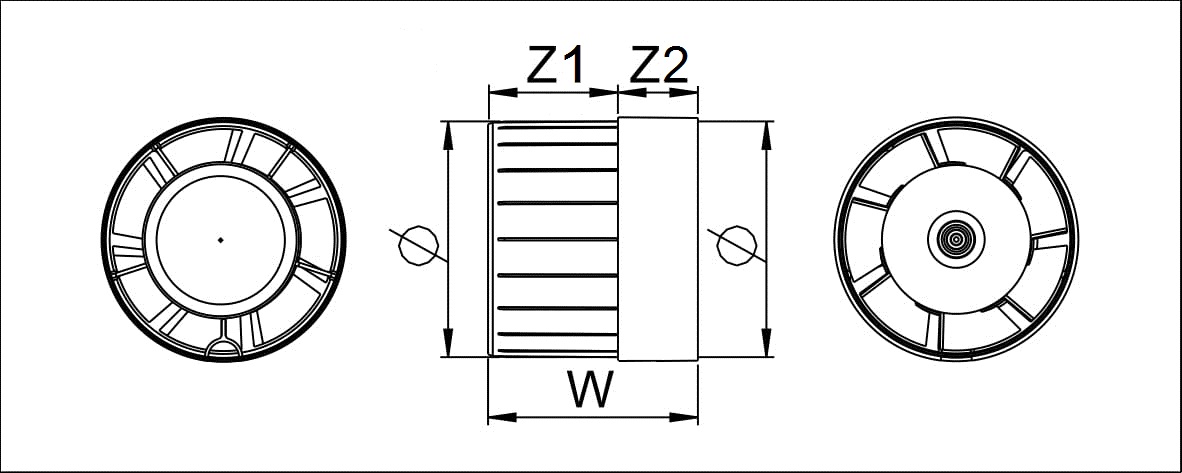

| DIMENSIONS - Ø 100 | ||||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||
| index | Ø | Z | Z1 | Z2 | ||||||||
| WKA100 | 100 | 89 | 55 | 34 |  |
|
125 | 14 | 45 | 36 | IPX4 | |
| WKA100T | 100 | 89 | 55 | 34 | |
|
|
125 | 14 | 45 | 36 | IPX4 |
| DIMENSIONS - Ø 125 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|||
| index | Ø | Z | Z1 | Z2 | ||||||||
| WKA125 | 125 | 83 | 43 | 40 | |
|
215 | 19 | 56 | 38 | IPX4 | |
| WKA125T | 125 | 83 | 43 | 40 | |
|
|
215 | 19 | 56 | 38 | IPX4 |
| DIMENSIONS - Ø 150 | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|||
| index | Ø | Z | Z1 | Z2 | ||||||||
| WKA150 | 150 | 90 | 56 | 34 | |
|
250 | 21 | 58 | 39 | IPX4 | |
| WKA150T | 150 | 90 | 56 | 34 | |
|
|
250 | 21 | 58 | 39 | IPX4 |
