The WD series fans are designed for use on roof surfaces, as well as on ventilation chimneys. They are characterized by their IP44 protection class, which guarantees the safety of operations in diverse weather conditions. Products are made of, among others, ABS and stainless steel, which positively affects their longevity and appearance. Roof fans with vertical air throw are an absolute novelty in the offer of AWENTA.
COLORS | |||||||||
BIAŁY - WD |

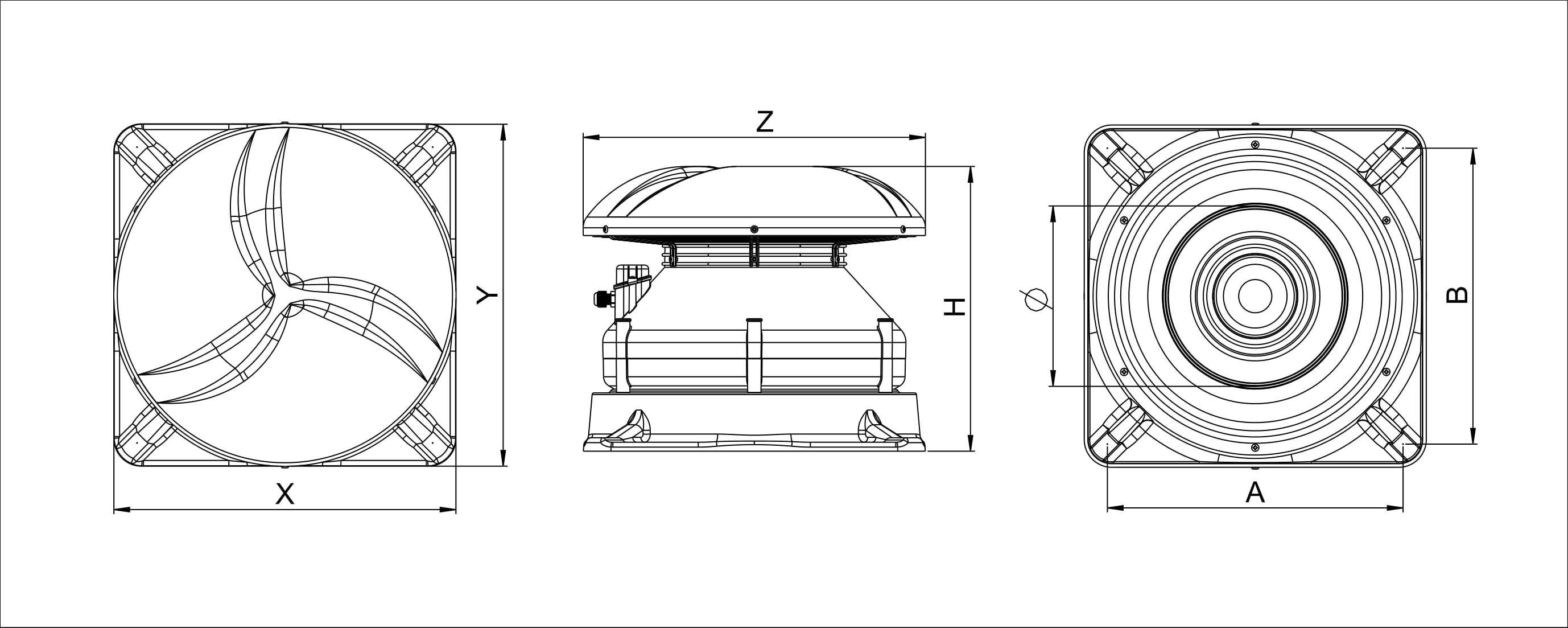

DIMENSIONS | |||||||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||||||
index | Ø | A | B | H | X | Y | Z | ||||||
WD150/160 | 150/160 | 330 | 330 | 350 | 385 | 385 | 385 | ![]() |
690 | 118 | 415 | 73 | IP44 |
WD200 | 200 | 330 | 330 | 350 | 385 | 385 | 385 | ![]() |
790 | 107 | 420 | 72 | IP44 |
