Vecco
The VECCO series fans are a product of classic design and high performance in its class. It draws attention by the rectangular shape of the cover front, which enables - according to the concept of use - to mount it in two planes.
Details
| COLORS | |||||||||
|
BIAŁY - WV |

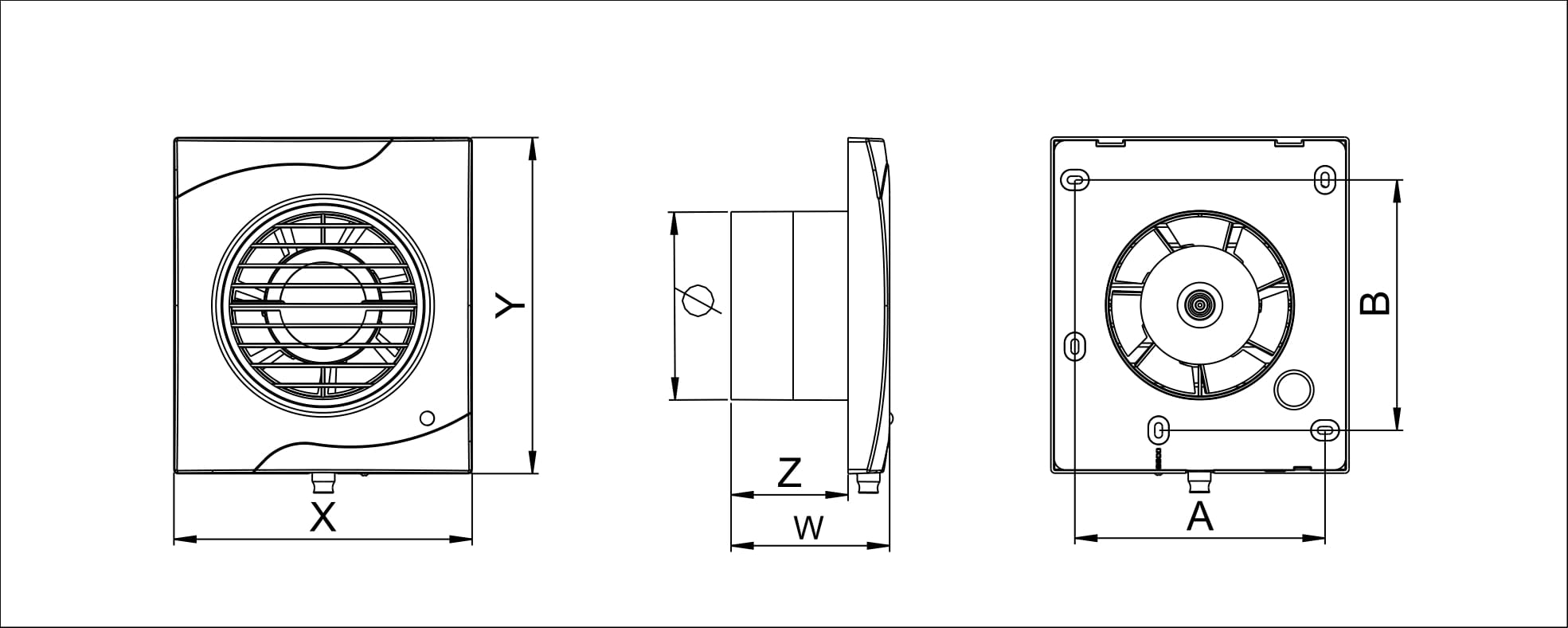

| DIMENSIONS - Ø 100 | |||||||
 |
 |
 |
 |
||||
| index | Ø | A | B | X | Y | W | Z |
| WV100 | 100 | 133 | 133 | 159 | 179 | 85 | 62 |
| WV100W | 100 | 133 | 133 | 159 | 179 | 85 | 62 |
| WV100T | 100 | 133 | 133 | 159 | 179 | 85 | 62 |
| CHARACTERISTIC - Ø 100 | |||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| index | |||||||||
| WV100 |  |
98 | 10 | 33 | 35 | IPX4 | |
||
| WV100W | |
|
98 | 10 | 33 | 35 | IPX4 | |
|
| WV100T | |
|
98 | 10 | 33 | 35 | IPX4 | |
|
Image Gallery
Additional Info
Kostka, Wyłącznik czasowy, Włącznik pociągany, Front klasyczny, Średnica 100 mm, Biały
-
