Inside
The most important advantage of the fan is the possibility to put on its front side any tile glaze or wall panel to integrate the device in the surrounding. In the INSIDE fan series, AWENTA focuses on aesthetics and silence with optimum air exchange rate.
Details

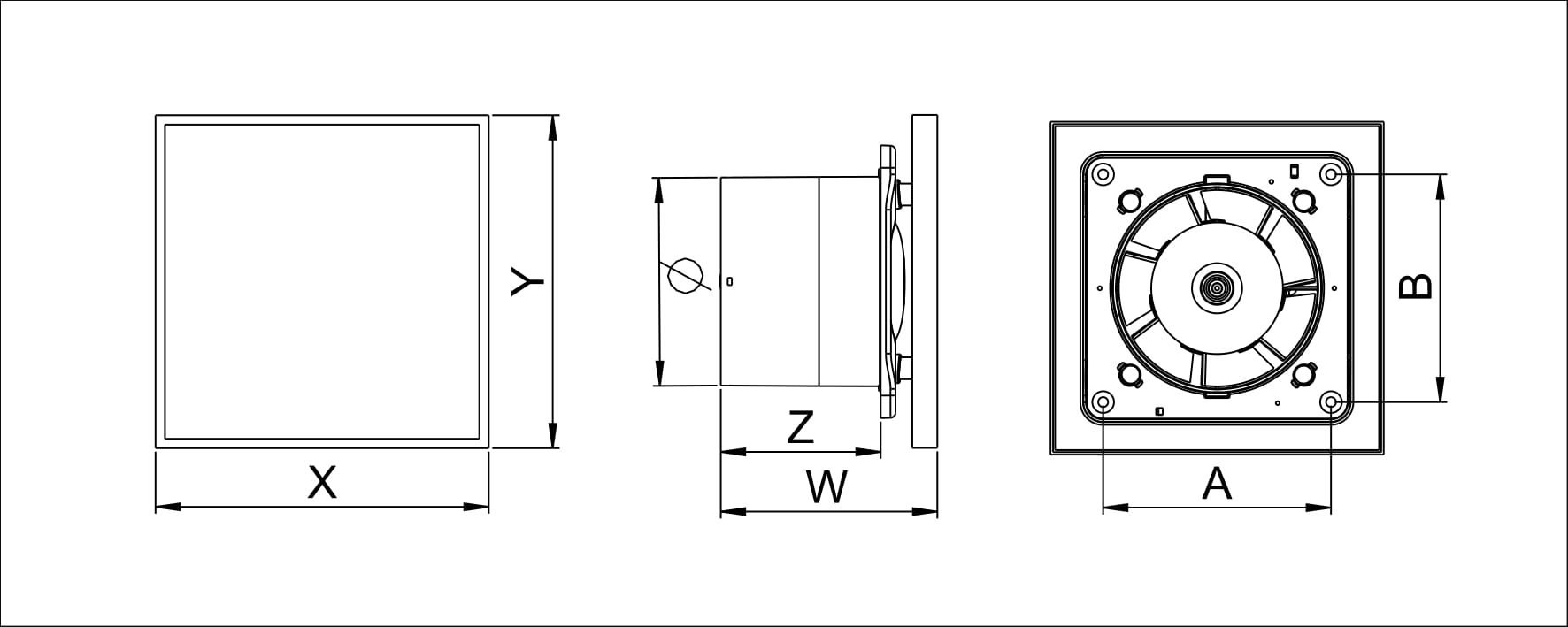

| DIMENSIONS - Ø 100 | |||||||
 |
 |
 |
 |
||||
| index | Ø | A | B | X | Y | W | Z |
| WI100 / WI100W | 100 | 109 | 109 | 160 | 160 | 101 | 77 |
| WI100T / WI100H | 100 | 109 | 109 | 160 | 160 | 101 | 77 |
| CHARACTERISTIC - Ø 100 | |||||||||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| index | |||||||||||
| WI100 |  |
|
102 | 10 | 33 | 35 | IPX4 | |
|||
| WI100W | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
||
| WI100T | |
|
|
102 | 10 | 33 | 35 | IPX4 | |
||
| WI100H | |
|
|
|
102 | 10 | 33 | 35 | IPX4 | |
|
| DIMENSIONS - Ø 125 | |||||||
|
|
|
|
||||
| index | Ø | A | B | X | Y | W | Z |
| WI125 / WI125W | 125 | 137 | 137 | 177 | 177 | 108 | 77 |
| WI125T / WI125H | 125 | 137 | 137 | 177 | 177 | 108 | 77 |
| CHARACTERISTIC - Ø 125 | |||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
| index | |||||||||||
| WI125 | |
|
175 | 16 | 46 | 37 | IPX4 | |
|||
| WI125W | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
||
| WI125T | |
|
|
175 | 16 | 46 | 37 | IPX4 | |
||
| WI125H | |
|
|
|
175 | 16 | 46 | 37 | IPX4 | |
|
Image Gallery
Additional Info
Kostka, Wyłącznik czasowy, Czujnik wilgoci, Włącznik pociągany, Silnik z łożyskami, Front panelowy, Średnica 100 mm, Średnica 125 mm
